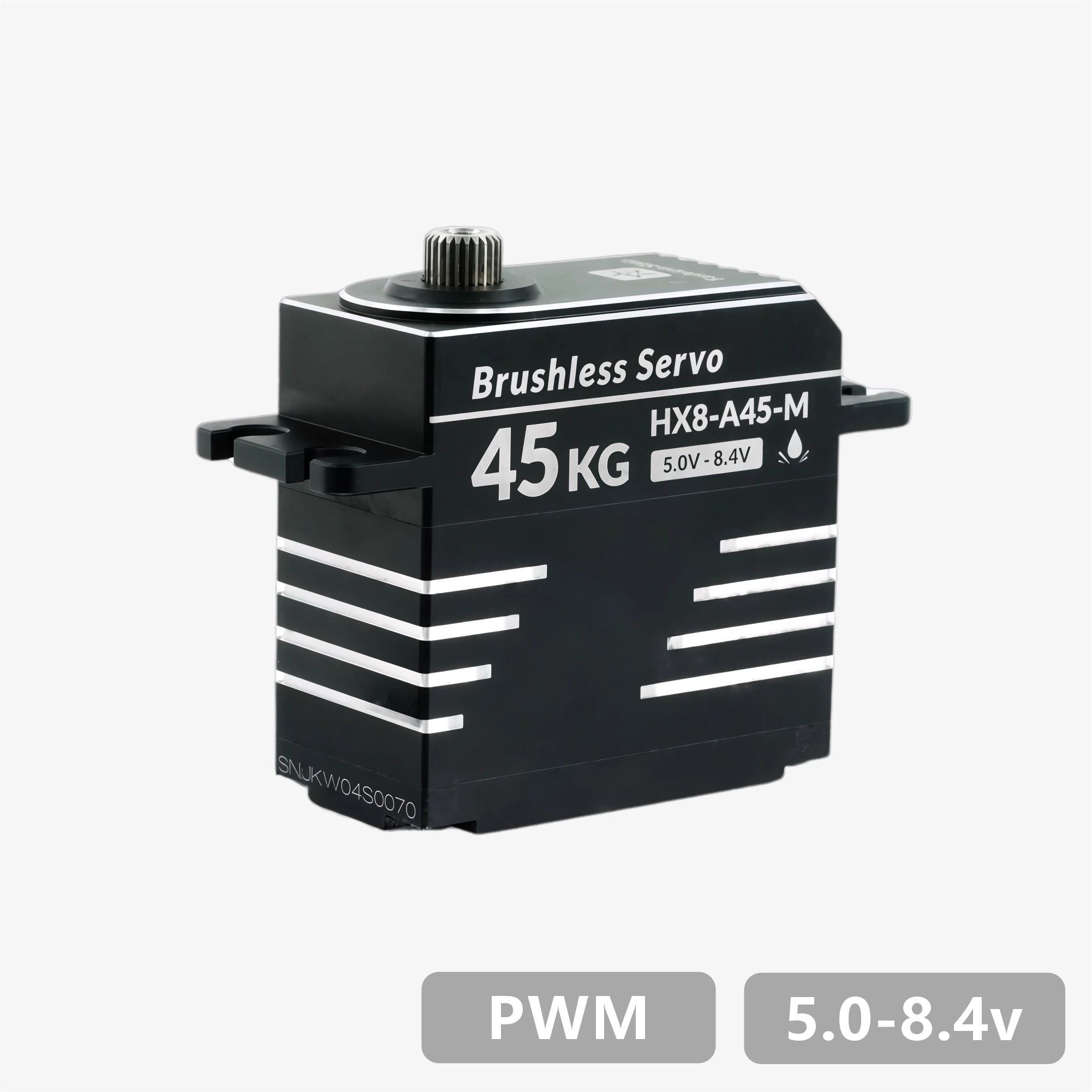

Datasheet - HX8-A45-M
1. Features
- Supports standard PWM control signals, widely compatible with microcontrollers, servo controllers, and robotics development platforms
- Equipped with a high-performance brushless motor for faster response, higher efficiency, and longer service life
- Built-in high-precision magnetic encoder position feedback for smooth and stable closed-loop angle control
- Uses the industry-standard 25T output spline, compatible with common servo horns, metal arms, and structural accessories
- Uses a high-strength reinforced metal gear train for strong wear resistance and impact resistance
- Features an aluminum CNC center case for improved heat dissipation under high load
2. Model Naming
3. Specifications
3.1 Basic Parameters
| Parameter | Value |
|---|---|
| Operating Voltage | 5.0 ~ 8.4 V |
| Motor Type | Brushless Motor |
| Position Sensor | Non-contact Absolute Encoder |
| Effective Angle | 180° (@500→2500μsec) |
| Rotation Direction | Counterclockwise (500→2500μsec) |
| Control Signal | PWM |
| PWM Period Range | 3 ~ 40 ms |
| Dead Band | 2 μs |
| Gear Ratio | 273:1 |
| Output Spline Spec | Stainless Steel / 25T |
| Output Spline Support | Dual Bearings |
| Interface Type | PH2.0 x 2 |
| Housing Material | Full Aluminum Alloy |
| Dimensions | 40 x 40 x 20 mm |
| Weight | 90 g |
| Protection | Stall | Over-temperature | Over-voltage Protection |
3.2 Performance Parameters
| Parameter | Value |
|---|---|
| Stall Torque | @8.4V: 49 kg-cm @7.4V: 45 kg-cm @6.0V: 39 kg-cm |
| No-load Speed | @8.4V: 0.085 sec / 60° @7.4V: 0.095 sec / 60° @6.0V: 0.118 sec / 60° |
| Stall Current | 6 A |
| No-load Current | 300 mA |
| Standby Current | 50 mA |
4. Dimensions & Installation
Downloads: PDF | STEP | DWG | More Accessory Drawings
5. Interfaces & Wiring
Pin Definition
Daisy-Chain
Parallel Connection
