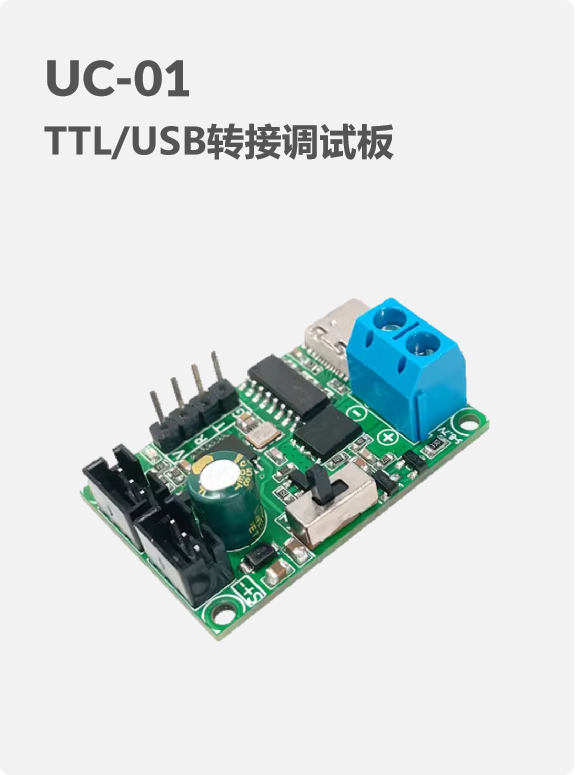

Datasheet - TTL / USB Adapter & Debug Board UC-01
1. Features
- Built‑in conversion between half‑duplex and full‑duplex
- Selectable TTL logic level: 3.3 V / 5.0 V
- USB Type‑C data interface
- Ideal for bus servo ID configuration, parameter setting, and communication with PC or other platforms
2. Specifications
| Item | Value |
|---|---|
| Input Voltage | 6.0–15.0 V |
| Signal Conversion | Half‑duplex ↔ Full‑duplex |
| TTL Logic Level | 3.3 V | 5.0 V |
| Maximum Current Capacity | 20 A |
| UART Output | 1 port |
| Data Interface | USB Type‑C |
| Operating Temperature | −10 ~ 60 °C |
| Protection | Reverse polarity protection |
| Servo Ports | PH2.0 × 2 |
| Mounting Holes | M2.0 × 3 |
| Power LED | Red |
| Dimensions | 36 × 24 mm |
| Weight | 5 g |
3. Interfaces

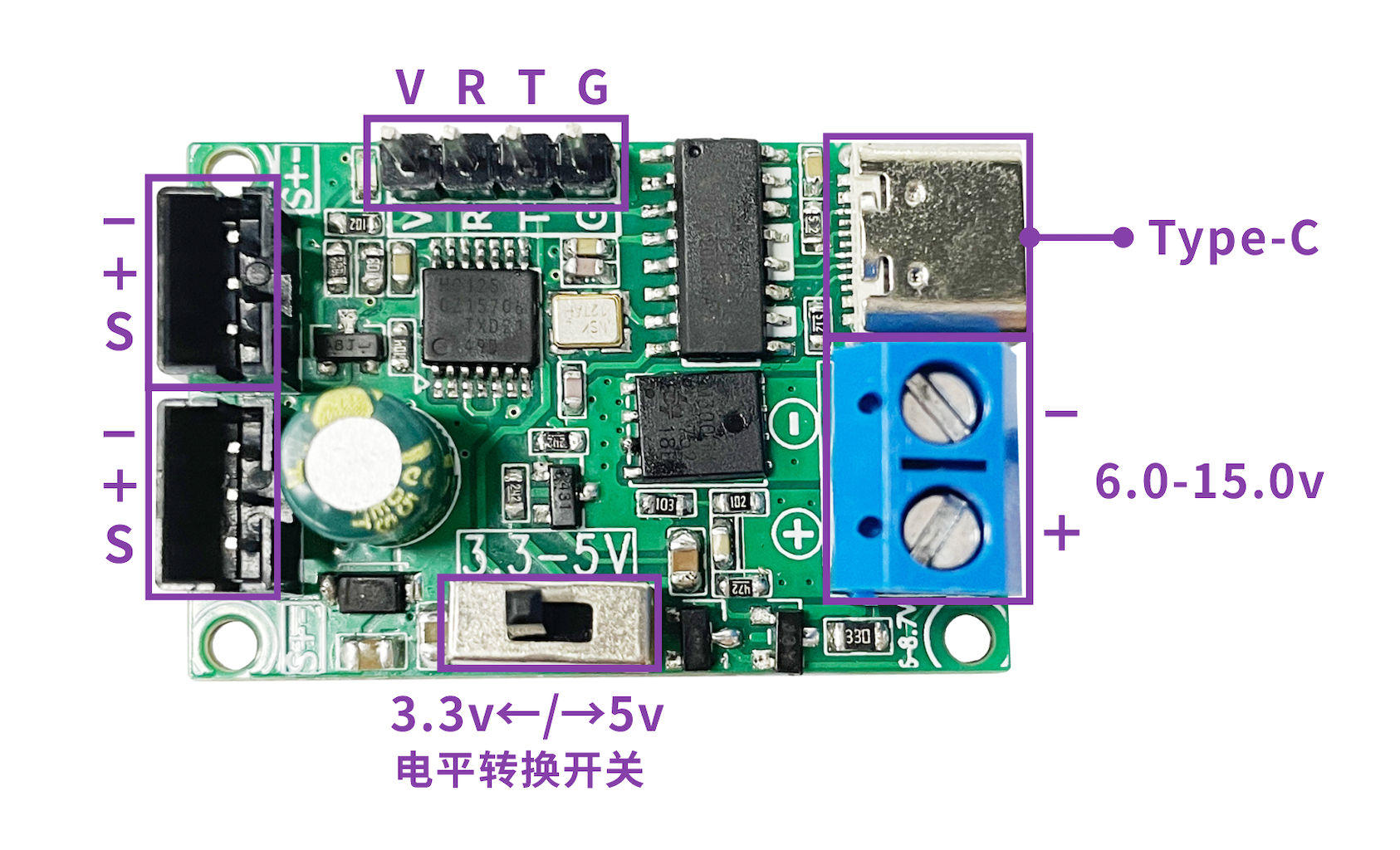

Pin Assignment
4. Dimensions

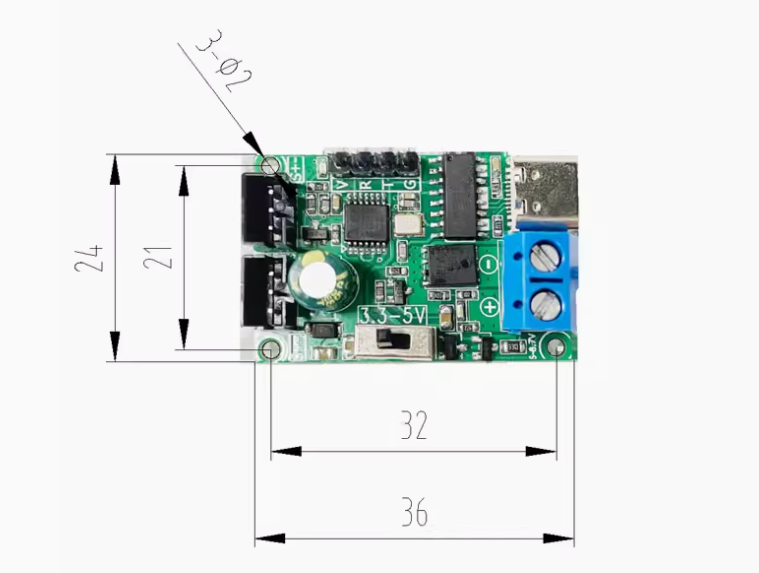

Mechanical Dimensions

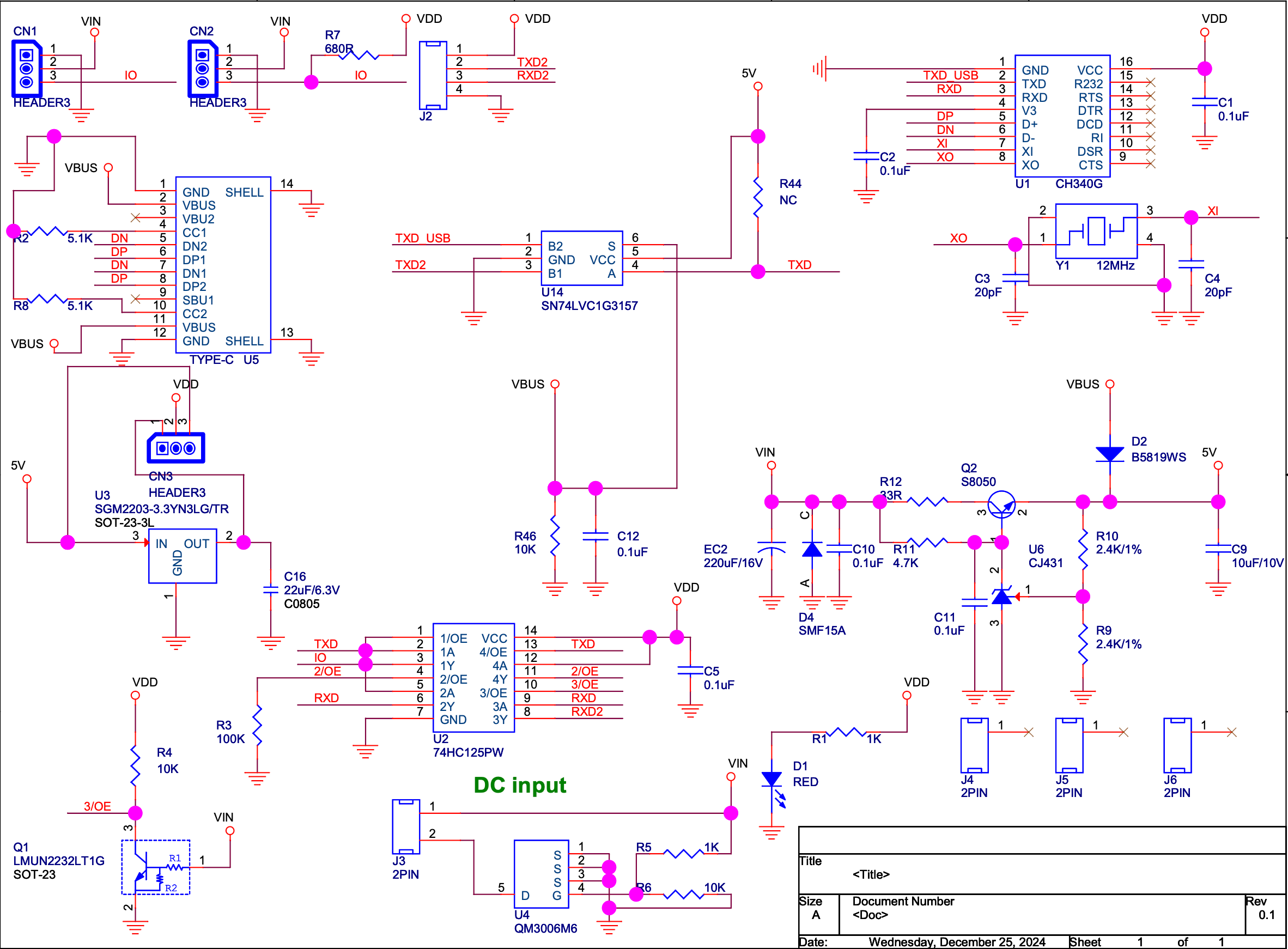

5. Reference Schematic
